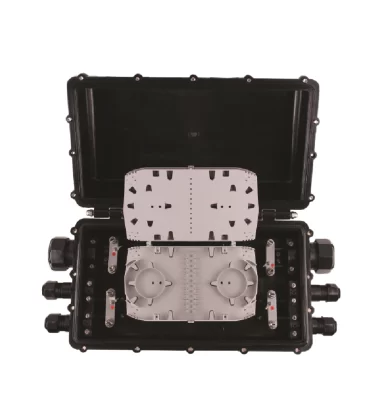

CAN-IN-6003 In-line Type Fiber Optic Splice Closure

Canovate CAN-IN-6003 In-line Type Fiber Optic Splice Closure especially designed for fiber optic cable joints in outdoor environments. It provides long-term reliability and usability, resistance to UV rays and water resistance at ambient temperature. It has easy installation.

Description

CAN-IN-6003 In-line Type Fiber Optic Splice Closure

Canovate CAN-IN-6003 In-line Type Fiber Optic Splice Closure especially designed for fiber optic cable joints in outdoor environments. It provides long-term reliability and usability, resistance to UV rays and water resistance at ambient temperature. It has easy installation.

Highlights:

  • 4 round ports of 20 mm and 2 round ports of 40 mm
  • Max. capacity of 480F for single core fiber. (1944 for Ribbon)
  • Mechanical seal. Protection grade: IP68.
  • Easy to re-enter, it never requires re-entry tool kit
  • Screws and cable clamps are all made of 304 stainless steel to improve the corrosion resistance.
  • Enough space for the storage of uncut cable.
  • Easy in installation.

Accessories:

  • Aerial fixing kit
  • Heat shrinkable fixing sleeve

Technical Document

Technical Document | Catalog

Technical Spesification

Dimensions 595 mm x 287 mm x205 mm (L x H x D)
Material Polypropylene
Weight 11 kg
Maximum Port Capacity up to 480 fibers
