Optical Telecommunication Outlet CAN-OTO-101

Canovate’s Optical Telecommunication Outlet (CAN-OTO-101) has been specially designed to simplify the installation of FTTH networks in apartments and offices.

Description

Optical Telecommunication Outlet CAN-OTO-101

Canovate’s Optical Telecommunication Outlet (CAN-OTO-101) has been specially designed to simplify the installation of FTTH networks in apartments and offices. The solution is a pre-terminated system which allows technicians to speed up the installation process by eliminating unnecessary splicing work.

The Optical Telecommunication Outlet is pre-terminated with 15, 20, 30, 40, 50 or 60 m riser cable options to accommodate the distance between it and the Building Distribution Box (NAP closure). The riser cable is wrapped in a dedicated package to allow for anti-twist unwinding.

Highlights:

  • Fiber Termination outlet with 2 x SC simplex or 2x LC dublex adaptors with shutter to prevent dust ingress
  • Small dimensions: HxWxD 116 x 82 x 24 mm
  • IP40
  • Already pre-wired with 15, 20, 30, 40, 50, 60 meters riser (drop) cable (100% factory tested)

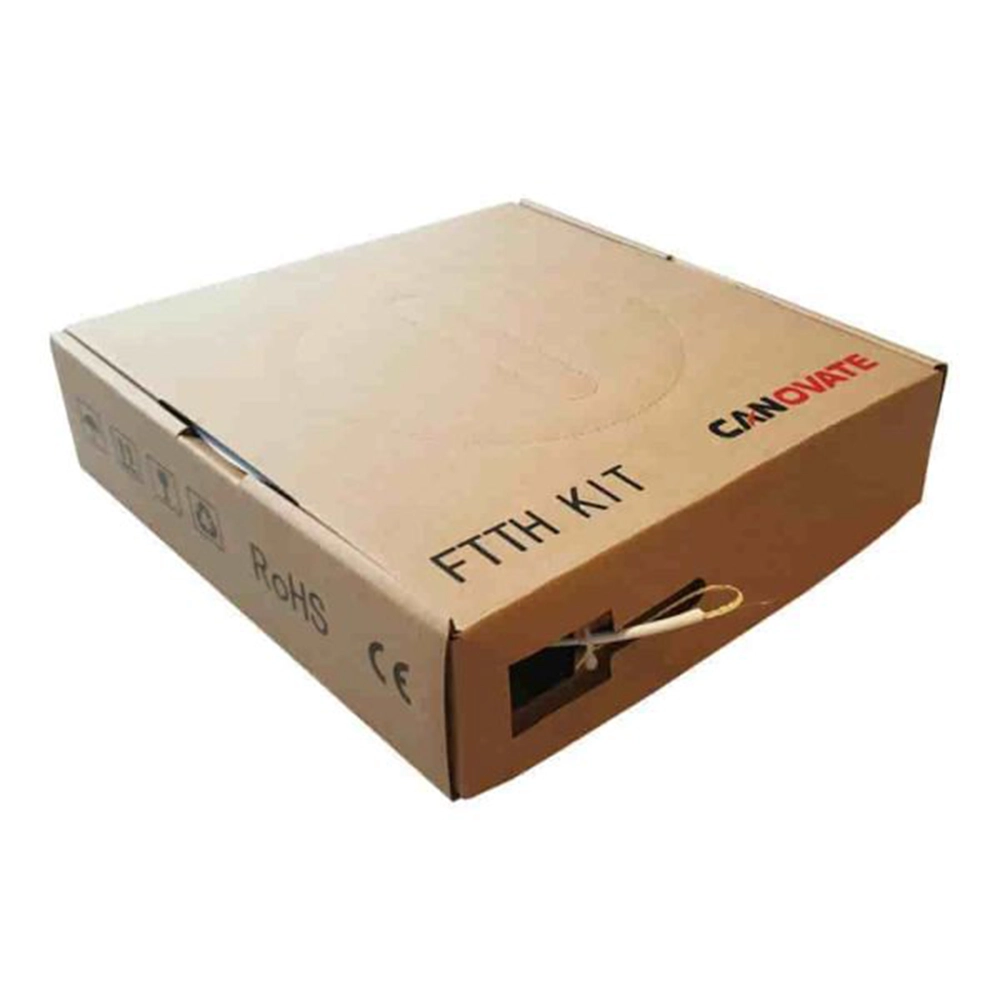

  • Special package for riser cable protection and storage
  • It requires no special equipment (does not require a device for slicing the fibre
  • Includes field installable connectors to enable tool-free connection to the building distribution box (BEP &NAP closure)
  • Assembled with G.657 A2 fiber
