Multi Operator MDU (Multi Dwelling Unit) Demarcation Box CAN-MDU-10X

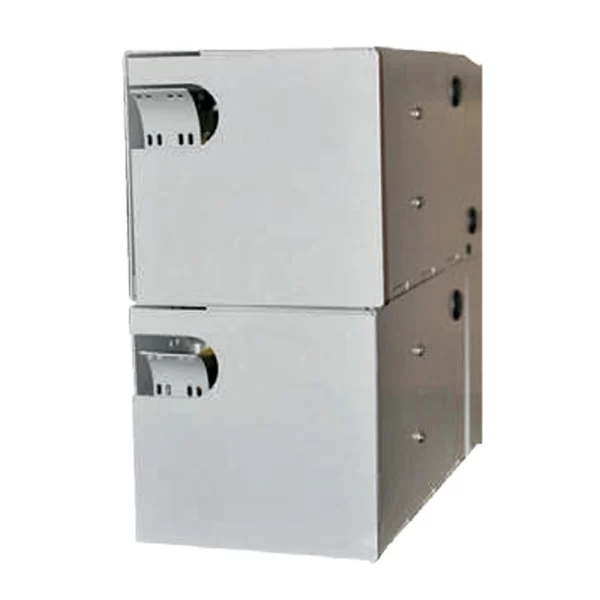

This Wall-Mountable Modular Multi Dwelling Unit is used in customer premises to connect the OSP Network with the indoor network. This unit is ideal for use as a multi-operator solution within a shared or parallel indoor network. The modular design allows this unit to be vertically stackable with separately lockable sections for splicing and patching.

Through their modular design, these MDU boxes fully meet the stipulation imposed by the telecom regulator body, “mutualization” of the Vertical Riser. This means that various carriers can deploy their own infrastructure as far as the basement of the building, and offer their bundle of services using a building infrastructure that may have been previously deployed by someone else during the initial phase of installation.

This solution is also adaptable to all type of configurations with splicing, splitter and pre-connectorized cable & patching options. The indoor distribution box is typically used in MDUs to splice incoming Outside Plant (OSP) fiber optical cables into customer premises cables. This Indoor Distribution Box needs to be easily accessible and manageable in size while offering full protection to the splices and patching inside. Both compartments of the box can be locked separately to control access to cable entry, splice and patch functions.

Description

Modules:

The unit has a modular design with two different module configurations:

*  Customer Module to terminate the vertical cables feeding the premises

*  Operator Module to terminate the external network cables

Highlights:

Up to 4 independent units can be stacked vertically for multi operator use

Each unit has 2 separate lockable sections with dual swinging doors

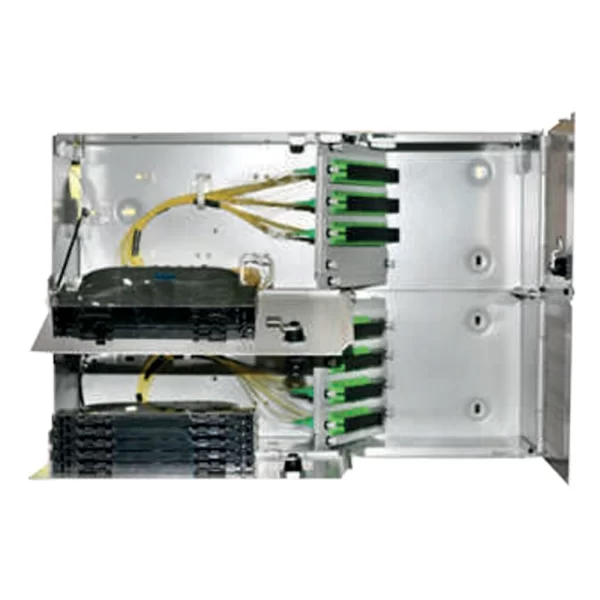

Modular interchangeable patch interface with 4 rows of 8x SC/ APC adapters or 8 x LC/APC Duplex adapters

Stack of maximum 4 splice cassettes with a capacity of 24 splices

Storage area for incoming operator cables, also for window-cut storage of unused loose tubes.

Separate storage areas for pigtails, outgoing splitter cords and fibers from riser cables

Splitters can be integrated as an option

Applications:

FTTX applications as indoor building distribution unit, LAN Networks.

Technical Document

Technical Document | Catalog

Technical Spesification

Dimensions 180x450x150 (HXWXD)
Material Galvanized Steel, 1.5 mm
Color Powder coat RAL7035
