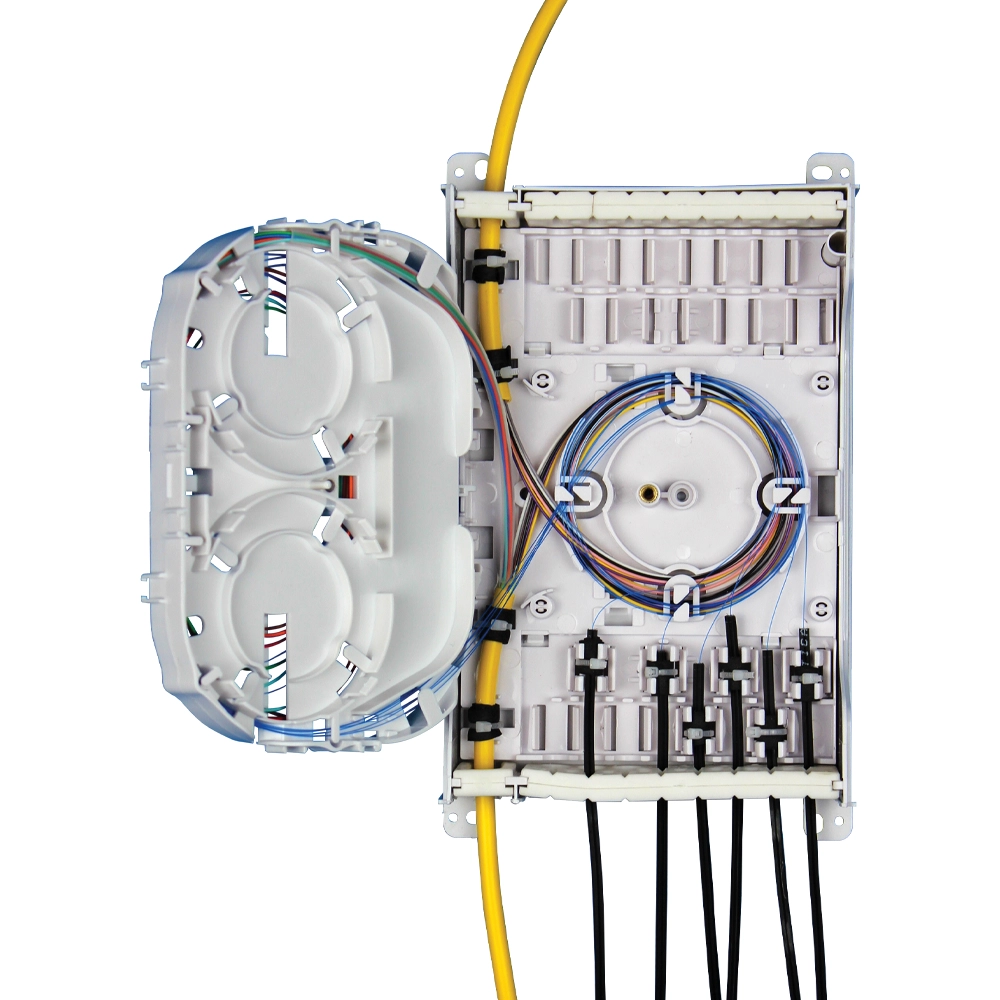

Indoor Riser Cable Termination Box CAN-RST-101

Canovate’s Indoor Riser Cable Termination Box (CAN-RST-101) allows the breakout of optical fiber from riser cables. By making a window cut not larger than 70 mm, the strength member is unaffected, and drop cables can be connected to the riser cable by fiber splices.

Description

Indoor Riser Cable Termination Box CAN-RST-101

Canovate’s Indoor Riser Cable Termination Box (CAN-RST-101) allows the breakout of optical fiber from riser cables. By making a window cut not larger than 70 mm, the strength member is unaffected, and drop cables can be connected to the riser cable by fiber splices.

Highlights:

  • Indoor use
  • Polycarbonate, UV-Resistant
  • LSZH material
  • 24 splices
  • In-line and butt configuration possible for main cable
  • Wrap around cable seals for main cable and drops
  • Not required to cut loop-through fibers from riser cable
  • Drop cables are terminated individually
  • Separate storage of un-connected fibers from spliced drop fibers
  • 100% Compatible to Bellcore GR-326 standards
  • Splitters can be installed inside

Applications:

FTTX applications, in building riser cable termination.

Technical Document

Technical Document | Catalog

Technical Spesification

Dimensions 126 mm(W) x 50 mm(D) x 200 mm(H)
Capacity – 24 Splice
– 12 Splice with splitters
Material Polycarbonate
Color RAL7035
Weight 0,63 kg
