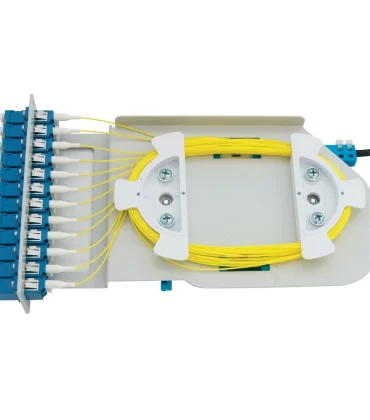

Gordion Front Access Module

Canovate’s Front Access Gordion Module (CAN-GOR-400) is designed for splice and patch applications in high-density environments where front access is desired, especially on the carrier and transmission side.

Description

Gordion Front Access Module

Canovate’s Front Access Gordion Module (CAN-GOR-400) is designed for splice and patch applications in high-density environments where front access is desired, especially on the carrier and transmission side.

Highlights of Fiber Distribution Module:

  • 3U Height module
  • Confirms 19” or ETSI
  • Modular structure with plug-in splice & patch modules
  • Can accommodate up to 12 plug-in modules
  • Front Access Module provides maximum 288 fiber termination can be achieved with LC Duplex adaptors
  • Miniflex tubes to protect incoming buffer cable
  • Etiquette for fibers identification on the front face
  • 100% Compatible to Bellcore GR-326 standards
  • Confirmity to every type of connectors (ST, SC, FC, LC, MTRJ,E2000, etc.)

Applications of Fiber Distribution Module:

In ODF`s and high density outdoor fiber applications at Carrier & Transmission level, FTTX applications, Utility Companies.

Technical Document

Technical Document | Catalog

Technical Spesification

Technical Details of CAN-GOR-400

Dimensions 441 mm (W) x 390 mm (D) x 133 mm (H)
Material Mild Steel
Color Powder coat RAL7035
Weight 8,5 kg
