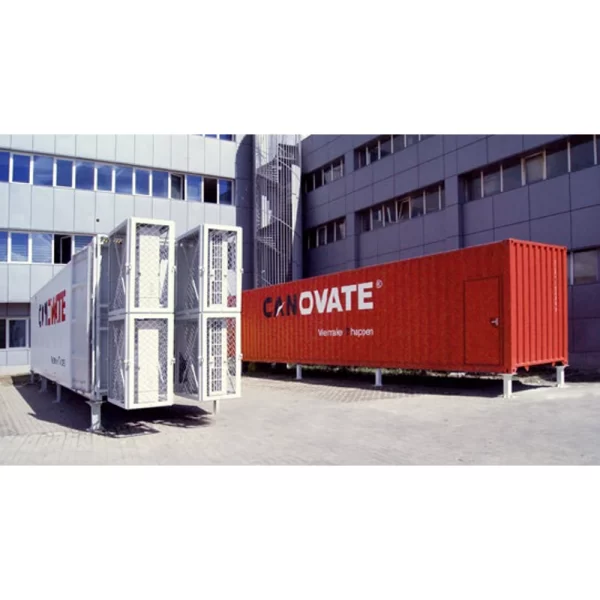

Mobile Container

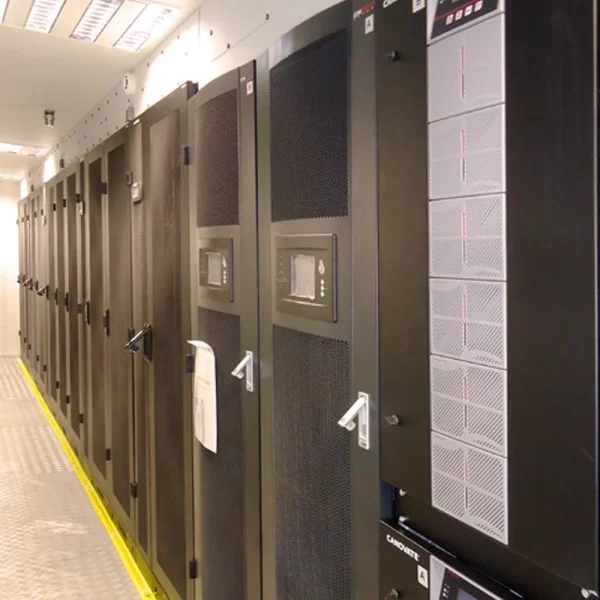

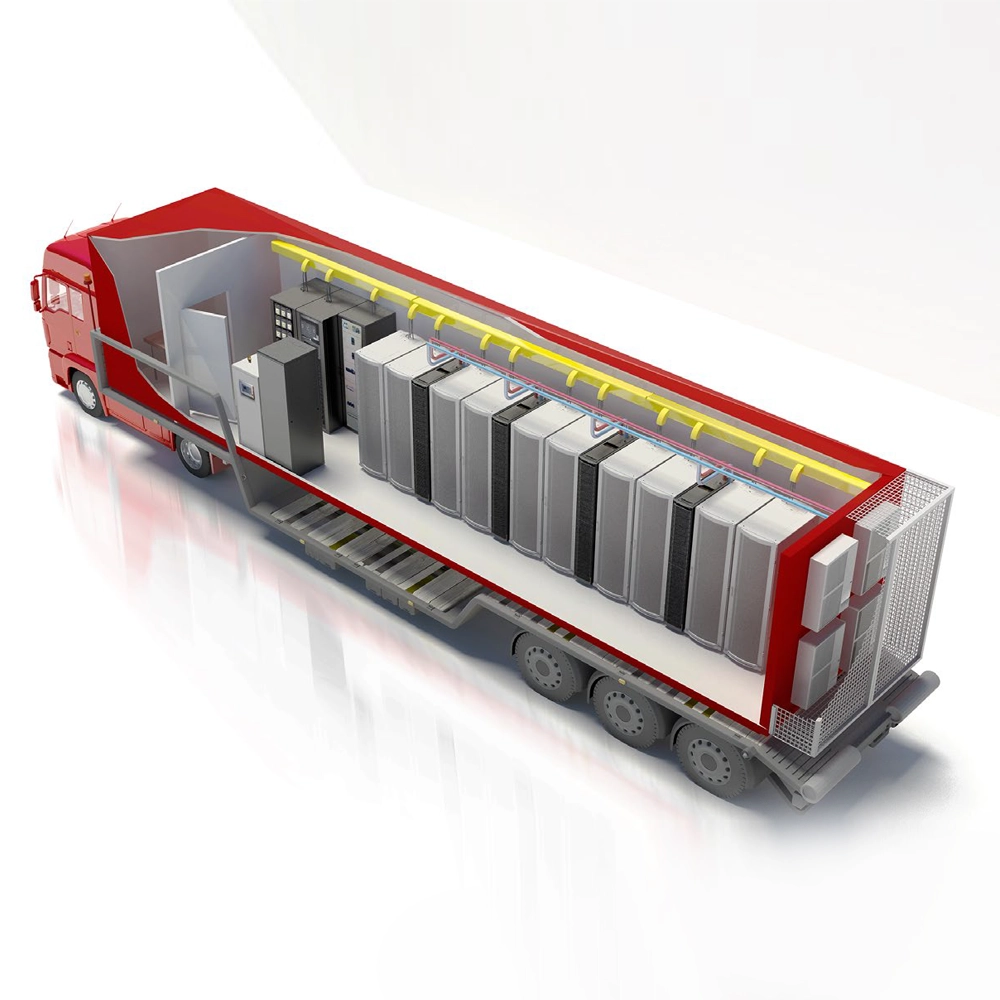

The mobile container provides a protected housing for the server cabinets, power distribution system, cooling system, monitoring system, fire control system, and lighting system. The container performs the following functions:

  • Houses the telecom and data center equipment, which can be interconnected inside in a safe, centralized manner.
  • Provides an environment that protects the container from external impact or access.

Description

Mobile Container

The mobile container provides a protected housing for the server cabinets, power distribution system, cooling system, monitoring system, fire control system, and lighting system. The container performs the following functions:

  • Houses the telecom and data center equipment, which can be interconnected inside in a safe, centralized manner.
  • Provides an environment that protects the container from external impact or access.

Technical Specifications of Mobile Container

  • Container / Shelter size : 12192 mm x 2438mm x 2896mm (high cube : 40 ft)
  • Outer / Inner sheet : Pre-painted Galvanized GI Sheet
  • Sheet Thickness : 0.6mm
  • Rockwool insulation thickness : 50mm overall
  • Floor Panel : 100 mm thickness (19mm plywood with 80 mm rockwool insulation and 0.6 mm sheet thickness)
  • Primary roof
  • 1 mtr extended ISMB / ISMC
  • Cable Tray
  • Door lock system
