Description

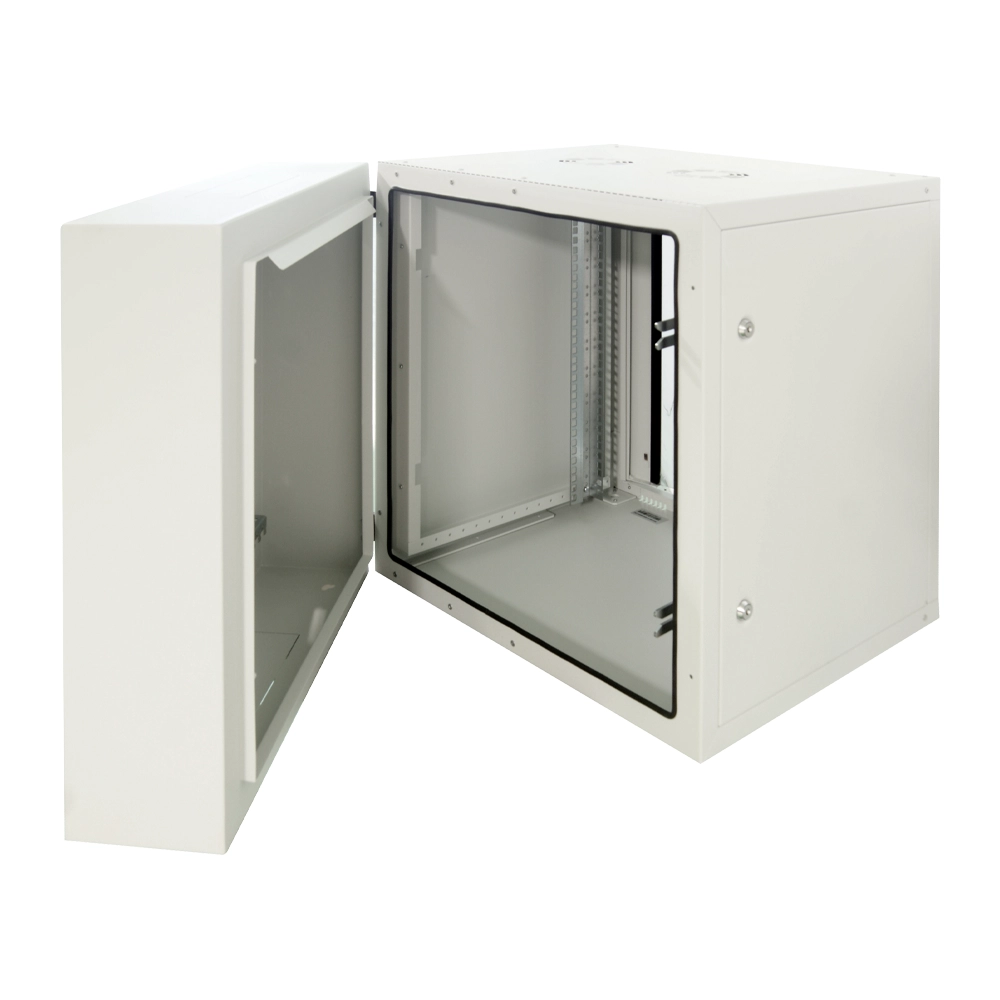

Double Section Wall Mount Cabinet
Canovate double section wall mount cabinet solutions are designed to ensure professional cable management and easy access to the inside of the cabinet.
Standard Configuration of WS3D Series Double Section Wallmount Cabinet:
- Steel frame
- Glass door with cylindrical lock
- Accessible from rear side with double hinged design
- 1 Pair of heavy duty 19” Mounting Rails
- Horizontal cable organizer on the back side
- RoHS compliant, UL Certificated
Technical Spesification
Material |
1-1,2-2 mm steel |
Color |
RAL 7035 or RAL 9005 |
Maximum Static Load |
Up to 10 kg. |
Finish |
Electrostatic Powder Paint |
Order Information
Height U |
Outer Width(W) mm |
Outer Depth (D) mm |
Outer Height (H) mm |
Inner Width(w1) mm |
Inner Depth (d1) mm |
Inner Height(h1) mm |
19” Rails Adjust- ableDepth Range (c) |
Weight kg |
Part No |
6 |
600 |
300+150 |
366 |
530 |
260+120 |
266 |
110-205 |
20,23 |
WS3D -X-066DA |
6 |
600 |
500+150 |
366 |
530 |
460+120 |
266 |
110-405 |
22,4 |
WS3D -X-066HA |
9 |
600 |
300+150 |
500 |
530 |
260+120 |
400 |
110-205 |
29,93 |
WS3D -X-096DA |
9 |
600 |
500+150 |
500 |
530 |
460+120 |
400 |
110-405 |
32,44 |
WS3D -X-096HA |
12 |
600 |
300+150 |
632 |
530 |
260+120 |
532 |
110-205 |
38,67 |
WS3D -X-126DA |
12 |
600 |
500+150 |
632 |
530 |
460+120 |
532 |
110-405 |
42,87 |
WS3D -X-126HA |
15 |
600 |
300+150 |
766 |
530 |
260+120 |
666 |
110-205 |
46,34 |
WS3D -X-156DA |
15 |
600 |
500+150 |
766 |
530 |
460+120 |
666 |
110-405 |
52,61 |
WS3D -X-156HA |
18 |
600 |
300+150 |
900 |
530 |
260+120 |
800 |
110-205 |
55,46 |
WS3D -X-186DA |
18 |
600 |
500+150 |
900 |
530 |
460+120 |
800 |
110-405 |
62,9 |
WS3D -X-186HA |
21 |
600 |
300+150 |
1034 |
530 |
260+120 |
934 |
110-205 |
64,67 |
WS3D -X-216DA |
21 |
600 |
500+150 |
1034 |
530 |
460+120 |
934 |
110-405 |
72,43 |
WS3D -X-216HA |
(Color Code): 7:RAL 7035 Light Grey , 9:RAL 9005 Black
