Cold & Hot Aisle Containment

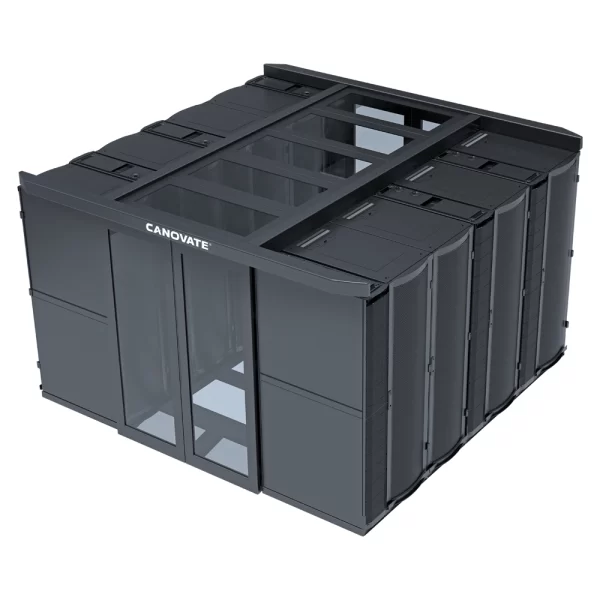

Cold & Hot Aisle Containment is a highly modular, scalable, expandable and retrofittable system. It enables isolation of hot and cold aisles to maximize cooling system efficiency and minimize cooling energy requirements. It provides efficient energy management, and energy savings increase to 50%. The top cover of the Cold & Hot Aisle Containment is made from easily tempered glass panels to maximize the available light and reduce the fire risk. The skirt-type blanking panels closes the gap between 19” mounting rails and side panels and enables zero-U patch panel fittings and cable management. To maximize cold air intake efficiency, Cold & Hot Aisle Containment Systems must be built on a raised floor.

Description

Cold & Hot Aisle Containment provides efficient energy management!

*  Optimum cooling solution for big and medium scale Data Centers coupled with CRAC units to increase efficiency of cooling system

*  Provides moderate efficiency, energy saving and free cooling capabilities

*  Increase server performance and cooling efficiency in Data Centers

*  The existence of cold & hot aisle containment eliminates the existence of hot spots

*  Modular Concept

*  Retrofitable

*  Cooling capacity of up to 10kW per rack

*  Green IT

*  Complete system solution:
– Power management
– Monitoring
– Cooling
– Security

*  Return on investment within 30 months

Technical Document

Technical Document | Installation Guide | Catalog

Technical Spesification

The Parts of Cold & Hot Aisle Containment System

1. Aisle Entrance DoorSliding Door Manual System

Product Code Product Description
DC-D1-X-42220 1200 mm width, For 42U Cabinets
DC-D1-X-47220 1200 mm width, For 47U Cabinets

Sliding Door Automatic System

Product Code Product Description
DC-D4-X-42220 For 42U Cabinets, 1200 mm width (Button)
DC-D4-X-47220 For 47U Cabinets, 1200 mm width (Button)
DC-D4-X-42220-P For 42U Cabinets, 1200 mm width (Fingerprint Reader)
DC-D4-X-47220-P For 47U Cabinets, 1200 mm width (Fingerprint Reader)
DC-D4-X-42220-K For 42U Cabinets, 1200 mm width (Key Pad)
DC-D4-X-47220-K For 47U Cabinets, 1200 mm width (Key Pad)
DC-D4-X-42220-C For 42U Cabinets, 1200 mm width (Card Reader)
DC-D4-X-47220-C For 47U Cabinets, 1200 mm width (Card Reader)

Swing Door Manual System
1 piece Left Door Panel, 1 piece Right Door Panel

Product Code Product Description
DC-D3-X-422Y0 For 42U Cabinets, 1200 mm width
DC-D3-X-472Y0 For 47U Cabinets, 1200 mm width

2. Top Cover

Product Code Product Description
DC-T-X-YY3Y0 For 300 mm width cooler, 1200 mm depth
DC-T-X-YY6Y0 For 600 mm width cabinet, 1200 mm depth
DC-T-X-YY8Y0 For 800 mm width cabinet, 1200 mm depth

The Accessories of Cold & Hot Aisle Containment System

Skirt Type Blanking Panel
2 pcs Blanking Panel between 19” mounting rail and cabinet profile

Product Code Product Description
DC-B3-X-428Y0 For 42u 800 width cabinet
DC-B3-X-478Y0 For 47u 800 width cabinet
DC-B3-X-426Y0 For 42u 600 width cabinet
DC-B3-X-476Y0 For 47u 600 width cabinet

Baying Kit 4 pieces in a set

Product Code Product Description
DC-B5-X-YYYY00 Front&rear Baying kit

Plinth

H (mm) W (mm) D (mm) Part No
60 300 1000 DC-B6-X-YY300
60 300 1200 DC-B6-X-YY320
60 600 1000 DC-B6-X-YY600
60 600 1200 DC-B6-X-YY620
60 800 1000 DC-B6-X-YY800
60 800 1200 DC-B6-X-YY820
