Cold/Hot Aisle Containment System
Canovate’s Cold & Hot Aisle containment solution is an Aisle Frame Containment system – separating the cold supply air from the
hot server exhaust. It maximizes the system’s efficiency, minimizes its power consumption, and reduces its footprint, making it the
perfect solution for medium- to large-scale data centers.
The Cold & Hot Aisle Containment system is retrofitable – making it ideal for improving the performance of older server rooms
facing upgrades. It’s also modular and scalable, which helps future-proof investment against growing needs. As demand on
your system increases, and your data center grows, our Cold & Hot Aisle Containment solution can grow proportionally.
• Enables isolation of hot and cold aisles to
maximize cooling system efficiency and minimize
cooling energy requirement
• Highly modular, scalable, expandable, and
retrofitable
• Optimum cooling solution for big and medium
scale Data Centers coupled with CRAC or Inrow
cooling units to increase efficiency of cooling
system
• Provides moderate efficiency, energy saving
and free cooling capabilities.
Advantages:
• More efficient than traditional cooling
technologies up to 50% energy savings
• Scalable, expandable • Increase server performance and cooling
efficiency in Data Centers
• Modular concept • Retrofitable • Green IT • Complete system solution:
– Power management
– Monitoring
– Cooling
– Security
• Efficient energy management • Customizable design options with various air
conditioning solutions
Maxı Data Center components
Commonly used components: • Manual, or automatic sliding doors allow highly light transparency • Various access controllers which are card reader, keypad, or fingerprint • Fixed, or pivot type top cover elements • Touchscreen display for local monitoring
Maxı Data Center applıcatıons
COLD aısle contaınment wıth INROW COOLING SOLUTIONS
It is indeed possible to implement a cold aisle containment structure with Inrow precision air conditioners in a Maxi DC (Data
Center) environment. This setup helps in achieving higher energy efficiency (measured by Power Usage Effectiveness or PUE) and
effective cooling performance by separating the hot and cold air streams.
HOt aısle contaınment wıth INROW COOLING SOLUTIONS
In-room based air conditioning solutions, commonly known as CRAC (Computer Room Air Conditioner) or CRAH (Computer
Room Air Handler) units, are often preferred for aisle containment systems in data centers. These units play a crucial role in
maintaining optimal temperatures within the facility.
Maxı Data Center
COLD aısle contaınment wıth crac/crah COOLING SOLUTIONS
In an aisle containment system, CRAC (Computer
Room Air Conditioner) or CRAH (Computer Room
Air Handler) units are often used as the preferred air
conditioning solution. These units supply cold air into
the data center by blowing it under a raised floor
through perforated tiles located between the rows of
cabinets.
Maxı Data Center

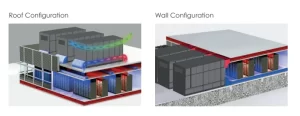

HOt aısle contaınment wıth crac/crah COOLING SOLUTIONS
CRAC/CRAH units can also be used in a Hot Aisle
Containment (HAC) setup where the cooling units
blow cold air into the room environment, and hot
air is collected from air ducts at the top, including
a chimney slot positioned just above the hot area
between the rows of cabinets.
Maxı Data Center

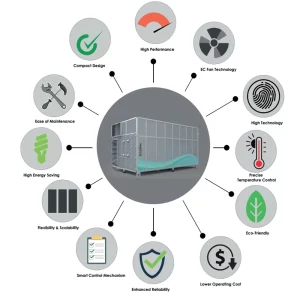

HOt aısle contaınment wıth ındırect evaporatıve COOLING (IEC) SOLUTIONS
Hot Aisle Containment (HAC) systems can
indeed be used in conjunction with Indirect
Evaporative Cooling (IEC) units to achieve
efficient cooling in data centers.
Indirect Evaporative Cooling units are known
for their high efficiency and ability to provide
significant energy savings compared to
traditional cooling systems. In an IEC system,
the cooling process involves the separation of
the cooling air stream from the conditioned
air stream, which eliminates the risk of
introducing contaminants into the data center
environment.
