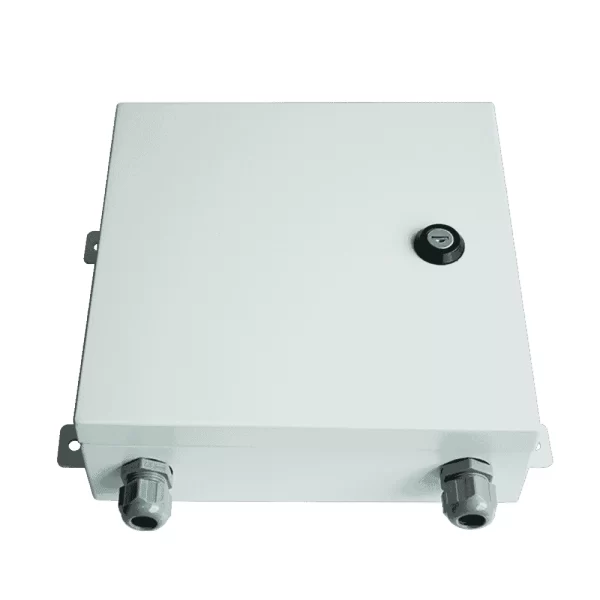

Metal Wall Mountable Outdoor Termination Boxes CAN-OUT-106

Our Metal Wall Mountable Outdoor Termination Boxes (CAN-OUT-106) is designed for harsh outdoor environments as well as aerial FTTX applications.

Description

Metal Wall Mountable Outdoor Termination Boxes CAN-OUT-106

Our Metal Wall Mountable Outdoor Termination Boxes (CAN-OUT-106) is designed for harsh outdoor environments as well as aerial FTTX applications.

Highlights:

  • Up to IP54 protected with special gasketing
  • Galvanized Steel
  • 6-24 port capacity
  • Special protection tubes and bend radien for protecting the incoming fiber from bending and guiding the fibers to the special designed splice cassettes in a professional way
  • Special splice cassettes of 12 or 24 port capacity with professional cable storage and protection
  • 100% Compatible to Bellcore GR-326 standards
  • Confirmity to every type of connectors (ST, SC, FC, LC, MTRJ, E2000, etc.)

Applications:

FTTX Applications, outside of the buildings and poles.

Technical Document

Technical Document | Catalog

Technical Spesification

Dimensions 305 mm (W) x 85 mm (D) x 250 mm (H)
Material Mild Steel
Color Powder coat RAL7035
Weight 4,80 kg
