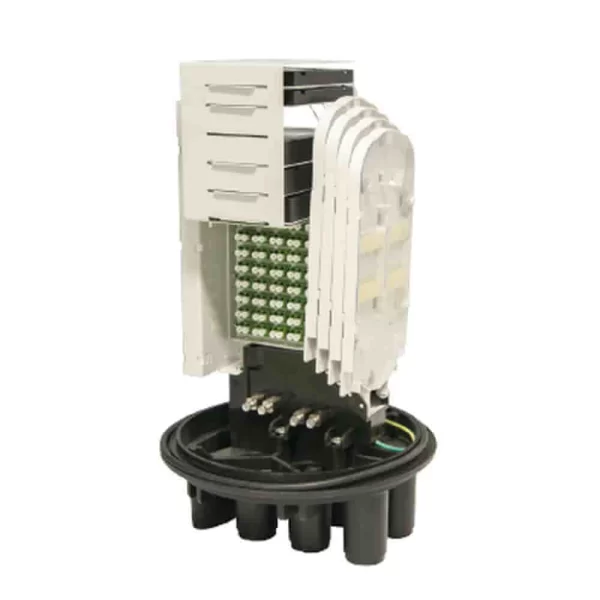

CAN-DO-9001 Dome Type Splitter Splice Closure

Canovate CAN-DO-9001 Dome Type Splitter Splice Closure  maintains connectivity regardless of the size, type and configuration of the network. It is resistant to abrasion, corrosion and environmental effects. It is suitable for outdoor and underground use. It has IP68 protection level. There are 7 inlet and outlet ports in total.

Category:

Description

CAN-DO-9001 Dome Type Splitter Splice Closure

Canovate CAN-DO-9001 Dome Type Splitter Splice Closure  maintains connectivity regardless of the size, type and configuration of the network. It is resistant to abrasion, corrosion and environmental effects. It is suitable for outdoor and underground use. It has IP68 protection level. There are 7 inlet and outlet ports in total.

Highlights:

  • IP68
  • Total 7 inlet/outlet ports
  • 6 round ports (each port for 8 drop cable with maximum diamater up to 6 mm)
  • Diameter of oval port is 30mm
  • Closure construction and lightweight plastic provides strength and resistance to chemical and U.V attack
  • All installation accessories are included, good sealed performance
  • Sheath retention & central strength member fastening system included
  • Quick installation type, easy to install and maintain

Accessories:

  • Earthing kit
  • Buffer tube for bunchy and ribbon fiber
  • Pressure testing valve
  • Branching clip
  • Heat shrinkable fixing sleeve
  • Metal hoop

Applications:

Underground, Aerial, Vault, Pole Mounting.

Technical Document

Technical Document | Catalog

Technical Spesification

Dimensions 488mm x 285mm (h x d)
Material Polypropylene
Weight 3,5 kg
Capacity 4×2:16 LC + 2×2:2 LC Splitter,
80 port (40 pieces LC duplex adaptors)
